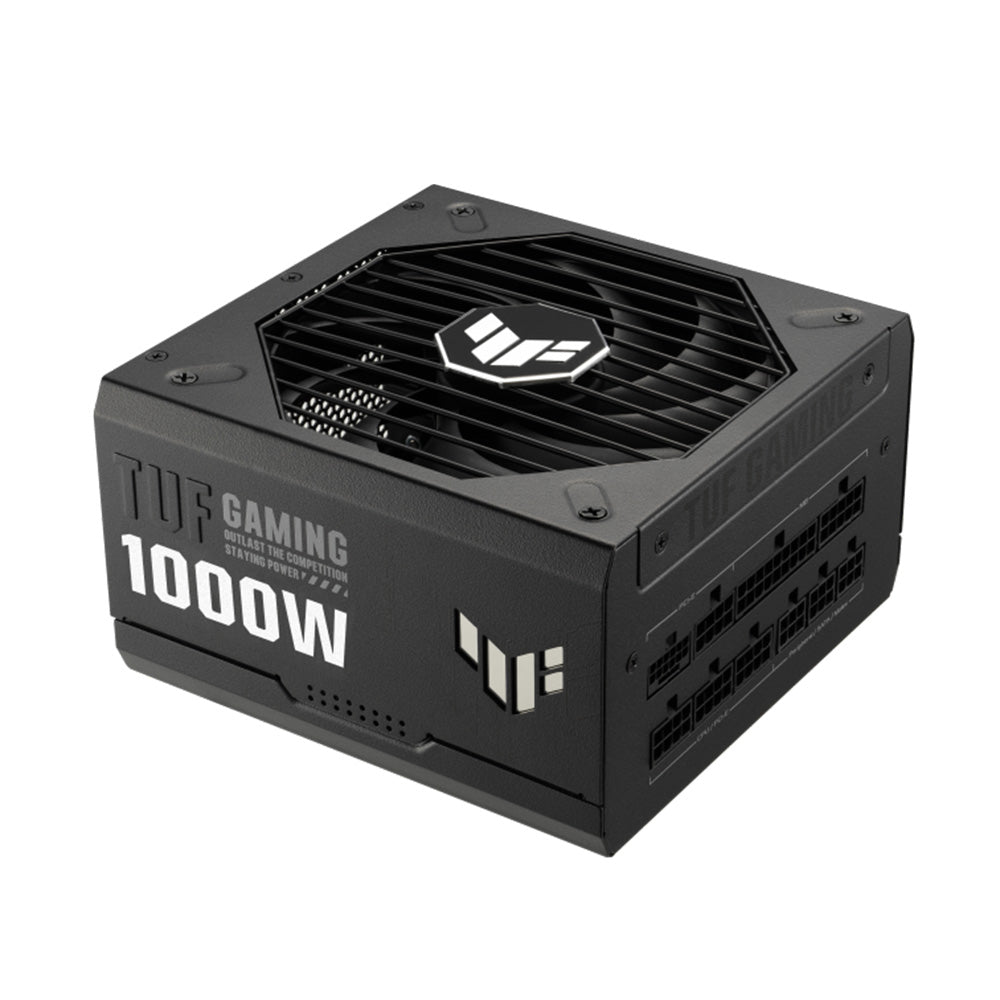

ASUS TUF Gaming PSU Power Supply (Black - 1000W - 80+ Gold - ATX 3.0)

Product Content
The capacitors and inductors have passed rigorous testing to obtain military-grade certification.
The service life of double ball bearings can be up to twice that of oil-sealed bearings.
PCB protective coatings protect against moisture, dust, and extreme temperatures.
The 80 Plus Gold certification is the culmination of Japanese-made capacitors and other high-quality components.
The axial fan design features a smaller fan hub to use longer blades, while the baffle ring increases downward air pressure.
Fully modular cabling keeps your host machine neat.
Includes a 10-year warranty.
Product Specifications
Model - TUF Gaming 1000W Gold

Intel Form Factor-ATX12V

ATX 3.0 - Yes

Dimensions - 150 x 150 x 86 mm

Efficiency -80Plus Gold

Protection Features-OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials - RoHS

AC Input Range: -100-240Vac

DC Output Voltage:+3.3V +5V +12V -12V +5Vsb

Maximum Load-25A25A83.3A 0.8A 3A

Combined Load-130W 130W 1000W 9.6W 15W

Total Output -1000W

Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 8-pin x 4
SATA x 5
PERIPHERAL x 4

Package Contents

Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 2 (675mm)
PCI-E 1-to-2 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable Tie x 3
User Manual x 1

Weight: 2.48kg (single PSU)

0dB Fan Button-No
