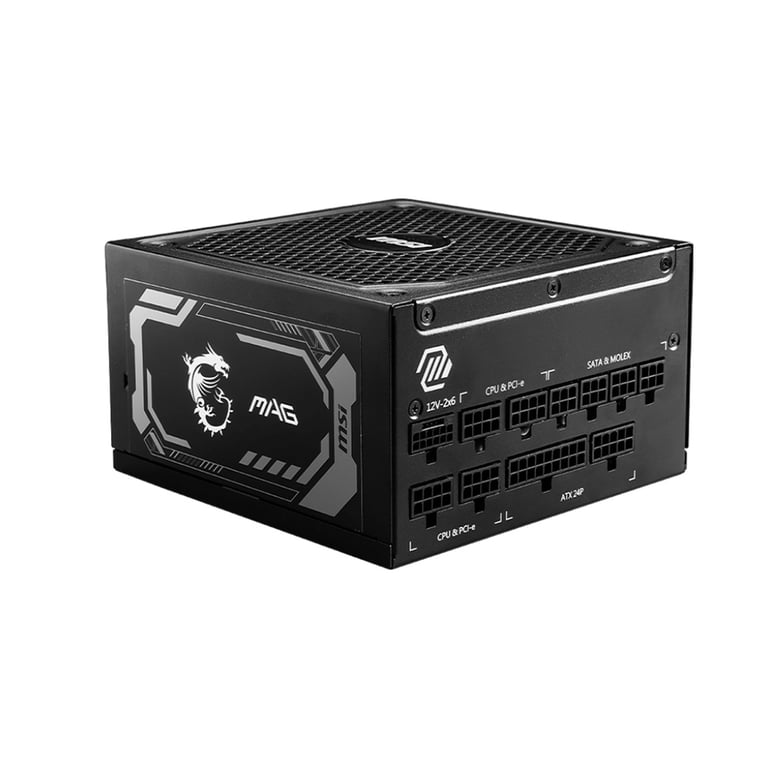

MSI MAG A1250GL 1250W GOLD PCIE5.0 電源供應器(PS-MPA12GL)

產品規格
EFFICIENCY RATING 80 PLUS Gold (up to 90%)
MODULAR Yes (fully modular)
FAN SIZE 135 mm
FAN BEARING Fluid Dynamic Bearing
DIMENSIONS (DXWXH) 150 x 150 x 86 mm
PFC TYPE Active PFC
INPUT VOLTAGE RANGE 100-240V~
POWER WATT 1250W
POWER EXCURSION 2500W (*up to 200% of the PSU's rated power for 100渭s)
INPUT FREQUENCY RANGE 50-60Hz
PROTECTION OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 PIN) 1
EPS (4+4 PIN) 2
PCI-E 5.1 (16 PIN) 1 (600W)
PCI-E (6+2 PIN) 4
SATA (15 PIN) 12
MOLEX (4 PIN) 4
FDD (4 PIN) 1
